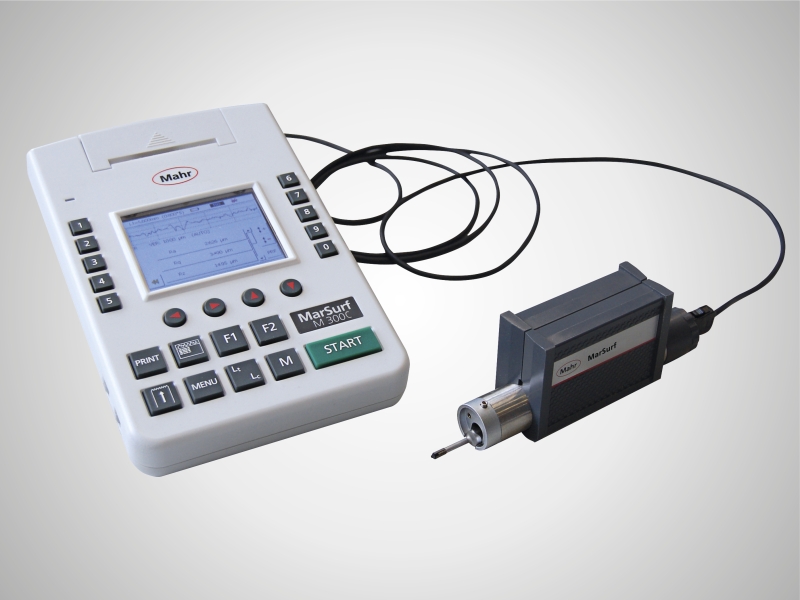

6910401 – M300 MARSURF SET – 2 UM INCLUDES 2 MICRON STYLUS

6910411 – M300 MARSURF SET – 5 UM INCLUDES 5 MICRON STYLUS

Measuring principle

Stylus method

Stylus method

Probe

Inductive skidded probe

Inductive skidded probe

Measuring units

selectable

selectable

Measuring range mm

0,350

0,350

Profile resolution

8 nm

8 nm

Vertical Scale

automatic/selectable

automatic/selectable

Horizontal scale

Depends on cutoff

Depends on cutoff

Log contents

R profile, MRK,
P profile (MOTIF),
results

R profile, MRK,
P profile (MOTIF),
results

Filter according to ISO/JIS

Gauß-Filter, Ls-Filter

Gauß-Filter, Ls-Filter

Short stroke under ISO/JIS

Selectable

Selectable

Evaluation lenth In according to ISO/JIS

1.25 mm, 4 mm, 12.5 mm

1,25 mm, 4 mm, 12,5 mm

Number n of sampling length according to ISO/JIS

Selectable: 1-5

Selectable: 1-5

Contacting speeds

0.5 mm/s

0.5 mm/s

Stylus

2 µm

5 µm

Measuring force (N)

0,00075

0,00075

LC display

High resolution color display, 3.5″, 320 x 240 pixel

High resolution color display, 3.5″, 320 x 240 pixel

Printing

Automatic/manual
record with time

Automatic/manual
record with time

Printer

Thermal printer, 384 points/horizontal line, 20 characters/line

Thermal printer, 384 points/horizontal line, 20 characters/line

Printing speed

Approx. 6 lines/second corresponds to approx. 25 mm/s (1 in/s)

Approx. 6 lines/second corresponds to approx. 25 mm/s (1 in/s)

Thermopaper

Ø 40.0 mm-1.0 mm, width 57.5 mm-0.5 mm, coated

Ø 40.0 mm-1.0 mm, width 57.5 mm-0.5 mm, coated

Calibration function

dynamic

Dynamic

Password protection

Yes

Yes

Lock for device settings

Yes

Yes

Power management

Yes

Yes

Interfaces

Drive unit, power pack, USB, MarConnect

Drive unit, power pack, USB, MarConnect

Relative humidity

30 % to 85 %

30 % to 85 %

System of protection

M 300 = IP 42, RD 18 = IP 40

M 300 = IP 42, RD 18 = IP 40

Operating temp. range

+5 °C to +40 °C

+5 °C to +40 °C

Temperature range for storage

-15 °C to +55 °C

-15 °C to +55 °C

Power supplied

NiMH battery, capacity: approx. 1,000 measurements (depends on number and
length of record printouts), plug-in power pack with three power adapters,
for input voltages from 90 V to 264 V

NiMH battery, capacity: approx. 1,000 measurements (depends on number and
length of record printouts), plug-in power pack with three power adapters,
for input voltages from 90 V to 264 V

Dimensions (L x W x H) for drive unit in mm.

130 x 70 x 50 mm

130 x 70 x 50 mm

Weight drive unit

Approx. 300 g

Approx. 300 g

Dimensions (L x W x H) for measuring instrument in mm.

190 x 140 x 75 mm

190 x 140 x 75 mm

Weight measuring instrument

Approx. 1 kg

Approx. 1 kg
