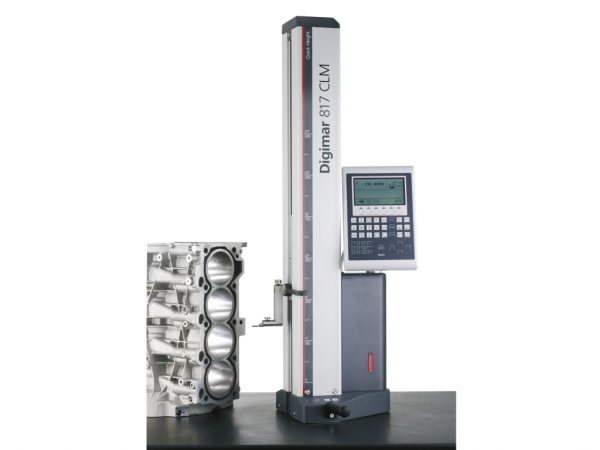

817 CLM

  • Excellent accuracy and reliabilty due to the optical incremental measurement system with the double reader head
  • Dynamic probing system enabling high repeatability
  • Air bearings system for light and smooth movement
  • Precise measuring head on stainless steel guideways
  • Motorized measuring carriage simplifies measurement runs
  • Probe constant remains after the instrument is switched off
  • Integrated rechargeable battery with a long operating time span for power source independent measurement
  • Temperature compensation with an integrated temperature sensor
  • Large and clearly defined function keys
  • Easy to read background lit graphic LCD-Display
  • Operator guidance with self-explanatory icons / pictograms
  • Operator prompts and menus are available in several languages
  • Possible to set additional zero points on a work piece
  • Additional measurement instruments with Opto RS232-interface can be connected
  • Secure the future due to software update potential
  • Automatic Stand-by switch mode
  • Selectable Auto-off function, without loss of measured values

Click here for Catalog

Category:

Description

Order no. Measuring range mm Measuring range inch Resolution Resolution Error limit Repeatability bores Repeatability plane Perpendicularity error in µm Measuring force (N) Product weight Standard Data interface
4429010
0 – 350
0 – 14″
0.01 mm / 0.005 mm / 0.001 mm / 0.001 mm / 0 mm
0.001 inch / 0.001 inch / 0 inch / 0 inch / 0 inch
(1,8+L/600) L in mm
1 µm
0.5 µm
5 µm
1.0 +/- 0.2 N
25 kg
Factory standard
USB / RS232C / Wireless
4429011
0 – 600
0 – 24″
0.01 mm / 0.005 mm / 0.001 mm / 0.001 mm / 0 mm
0.001 inch / 0.001 inch / 0 inch / 0 inch / 0 inch
(1,8+L/600) L in mm
1 µm
0.5 µm
6 µm
1.0 +/- 0.2 N
30 kg
Factory standard
USB / RS232C / Wireless
4429012
0 – 1000
0 – 40″
0.01 mm / 0.005 mm / 0.001 mm / 0.001 mm / 0 mm
0.001 inch / 0.001 inch / 0 inch / 0 inch / 0 inch
(1,8+L/600) L in mm
1 µm
0.5 µm
10 µm
1.0 +/- 0.2 N
35 kg
Factory standard
USB / RS232C / Wireless
