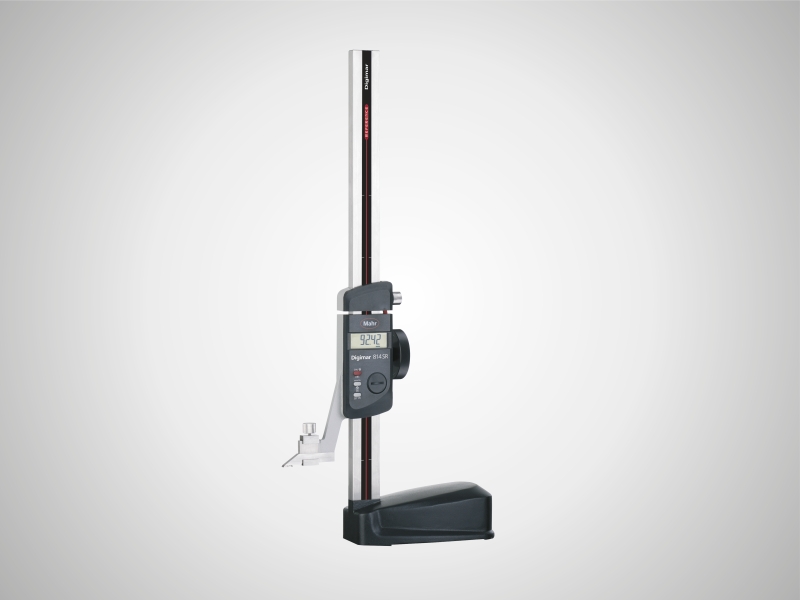

814 SR Digital Height Gauge

Battery life up to 3 years
Max. measuring speed 1,5 m/s (60”/s)
MarConnect Data output: choose either
– USB
– OPTO RS232C
– Digimatic
High contrast liquid crystal display with 12 mm sized digits
Sturdy heavy-duty base, easy to handle
Hardened and lapped contact surface which produce both a smooth and even movement
Slide and beam made of hardened stainless steel
Hand crank for positioning and measuring
Fine adjustment
Locking screw
Interchangeable scriber point, carbide tipped

Category:

Description

Order no. Measuring range mm Measuring range inch Resolution Resolution Error limit inches Error limit µm Product weight Standard Data interface
4426100
0 – 350
0 – 14″
0.01 mm
0.001 inch
.0016″
40 µm
7 kg
Factory standard
Opto RS232C / Digimatic / USB / Wireless
4426101
0 – 600
0 – 24″
0.01 mm
0.001 inch
.0020″
50 µm
8 kg
Factory standard
Opto RS232C / Digimatic / USB / Wireless
