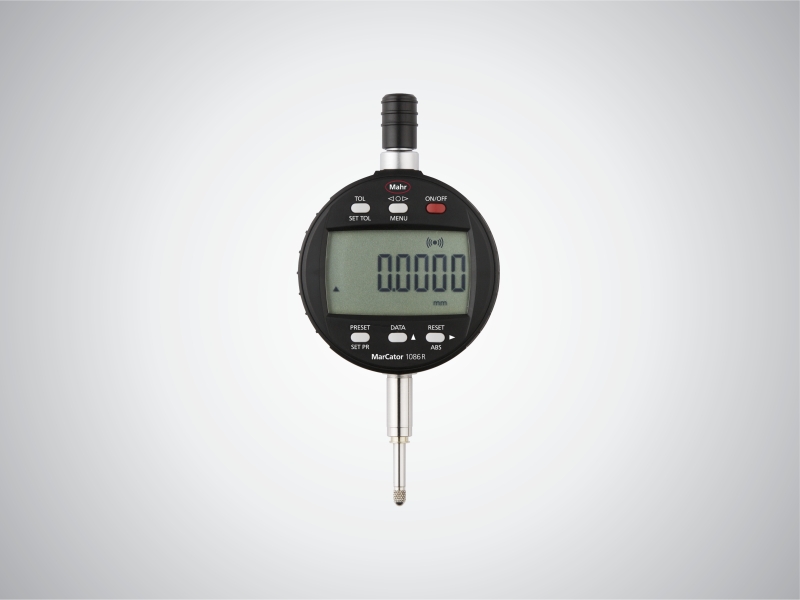

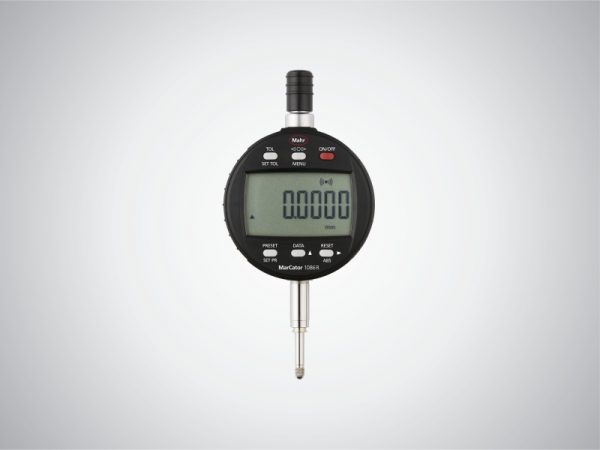

Digital Indicators

Integrated wireless transmitter
High contrast LCD
Operating and display unit (bezel) can be rotated through 280°
Mounting shank and measuring spindle are both made of hardened stainless steel
Immediate measurements due to the Reference System

Category: Digital and Dial Indicators

Description
Reviews (0)

Description

Order no.	Product type	Measuring span in mm	Measuring span (inches)	Resolution	Resolution inches	Error limit (mm)	Repeatability mm	Standard	Measuring force (N)	IP protection category	Height of digits
4337624	1086 Ri	12.5 mm	.5″	0.001 mm / 0.001 mm / 0.002 mm / 0.005 mm / 0.01 mm	.00002″ / .00005″ / .0001″ / .0002″ / .0005″	0.004 mm	0.001 mm	Factory standard	0.65 – 0.9	IP 42	11 mm
4337625	1086 Ri	25 mm	1″	0.001 mm / 0.001 mm / 0.002 mm / 0.005 mm / 0.01 mm	.00002″ / .00005″ / .0001″ / .0002″ / .0005″	0.004 mm	0.001 mm	Factory standard	0.65 – 1.15	IP 42	11 mm
4337626	1086 Ri	50 mm	2″	0.001 mm / 0.001 mm / 0.002 mm / 0.005 mm / 0.01 mm	.00002″ / .00005″ / .0001″ / .0002″ / .0005″	0.007 mm	0.001 mm	Factory standard	1.25 – 2.7	IP 42	11 mm
4337627	1086 Ri	100 mm	4″	0.001 mm / 0.001 mm / 0.002 mm / 0.005 mm / 0.01 mm	.00002″ / .00005″ / .0001″ / .0002″ / .0005″	0.008 mm	0.001 mm	Factory standard	1.8 – 3.5	IP 42	11 mm
4337628	1086 Ri	25 mm	1″	0.001 mm / 0.001 mm / 0.002 mm / 0.005 mm / 0.01 mm	.00002″ / .00005″ / .0001″ / .0002″ / .0005″	0.004 mm	0.001 mm	Factory standard	0 – 0	IP 42	11 mm
